well.inspect – Inspection systems for wells and trays

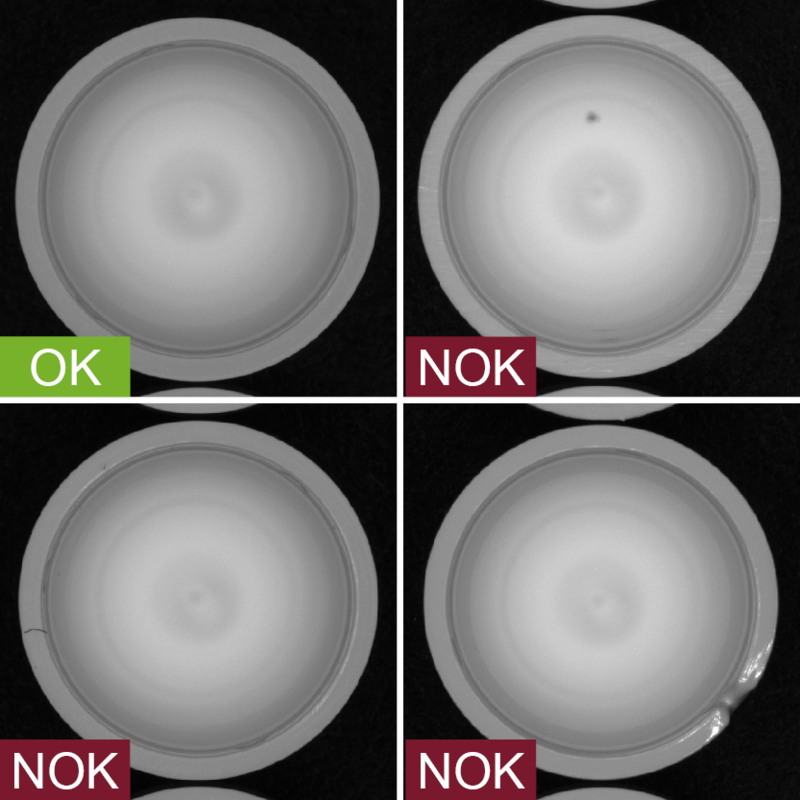

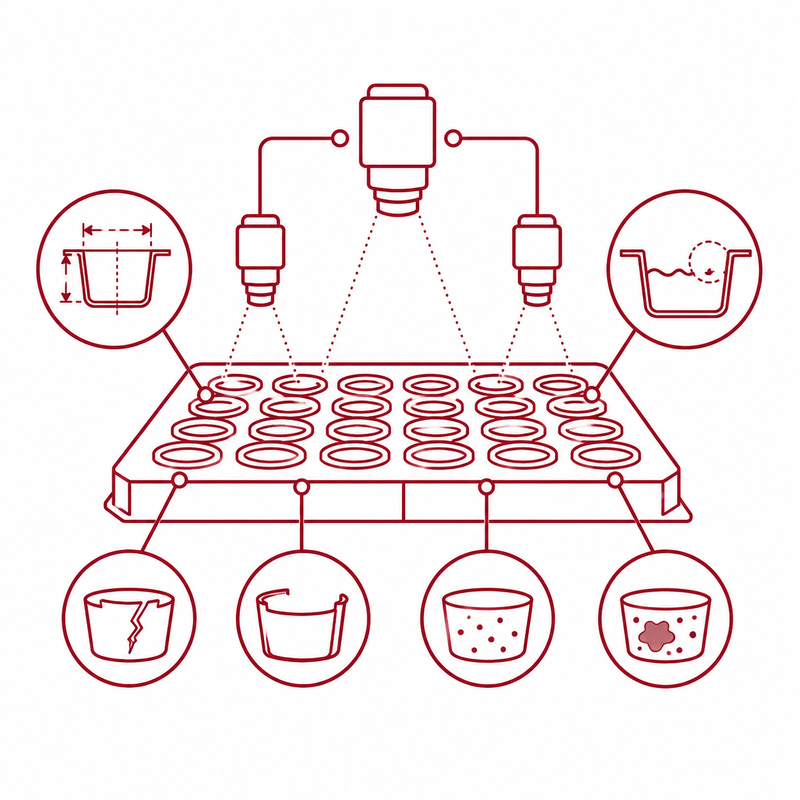

Wells and cups must be free of breaks, cracks, or mechanical damage. well.inspect visually inspects the relevant product areas and detects visible defects in individual wells, cup geometries, or tray structures.

Inspected features:

• Breakages
• Cracks
• Chipped areas
• Damaged well edges
• Damaged tray or cup areas
• Visible mechanical defects

Benefits:

Damaged wells or cups can skew analysis results, impair handling, or disrupt downstream processes. Breakage and damage inspection helps detect defective products early and supports their reliable rejection from the production line.

Complete and consistent mold filling is critical to the function and geometry of wells and cups. well.inspect detects incompletely formed areas and deviations from the defined target contour.

Inspected Features:

• Complete mold filling
• Incompletely formed areas
• Material defects
• Missing or deformed geometries
• Deviations from defined target features

Benefits:

The inspection ensures that wells and cups meet the required shape and function. Defective injection-molded parts can be detected and rejected directly during the process.

The geometry of the wells affects volume, positioning, fillability, and analysis quality. well.inspect can inspect relevant shape and position features and detect deviations from defined tolerances.

Inspected Features:

• Shape and contour deviations
• Roundness and dimensional accuracy
• Positional deviations
• Non-conforming well geometries
• Deformed individual wells or cups

Benefits:

Reliable geometric inspection supports consistent product quality and helps identify deviations early in the manufacturing process.

Surface defects on wells, cups, or trays can compromise optical quality, functionality, or analytical performance. well.inspect inspects relevant surface areas for visible defects and deviations.

Inspected features:

• Stains
• Black spots
• Visible surface defects
• Material inclusions
• Optical anomalies
• Local defects on well or tray surfaces

Benefits:

Surface inspection helps ensure consistently high product quality and reduces the risk of defective or visually abnormal products entering subsequent processes.

Contamination can skew analysis results and compromise the reliability of diagnostic or analytical processes. well.inspect detects visible contaminants and foreign particles on or in wells, cups, and trays.

Inspected characteristics:

• visible contamination
• foreign particles
• contaminants in individual wells
• deposits or residues
• noticeable particles or inclusions

Benefits:

Contamination inspection enhances safety in sensitive life science and diagnostic processes and supports the production of clean, reliable products.

Black spots, stains, or localized visual anomalies may indicate material or process defects. well.inspect detects such anomalies and can classify them according to defined defect types.

Inspected Features:

• black spots
• dark inclusions
• spots
• local discoloration
• localized surface irregularities

Benefits:

The targeted detection and classification of visual irregularities supports quality assurance and provides valuable insights for process evaluation.

Before the packaging process or further processing, it must be ensured that trays are fully and correctly loaded. well.inspect inspects tray completeness and detects missing or incorrectly positioned wells and cups.

Inspected characteristics:

• Completeness in the tray
• Missing wells or cups
• Incorrectly loaded positions
• Empty tray positions
• Misaligned or incorrectly oriented wells or cups

Benefits:

The completeness check prevents incomplete packaging units and increases process reliability prior to shipping, further processing, or automated laboratory use.

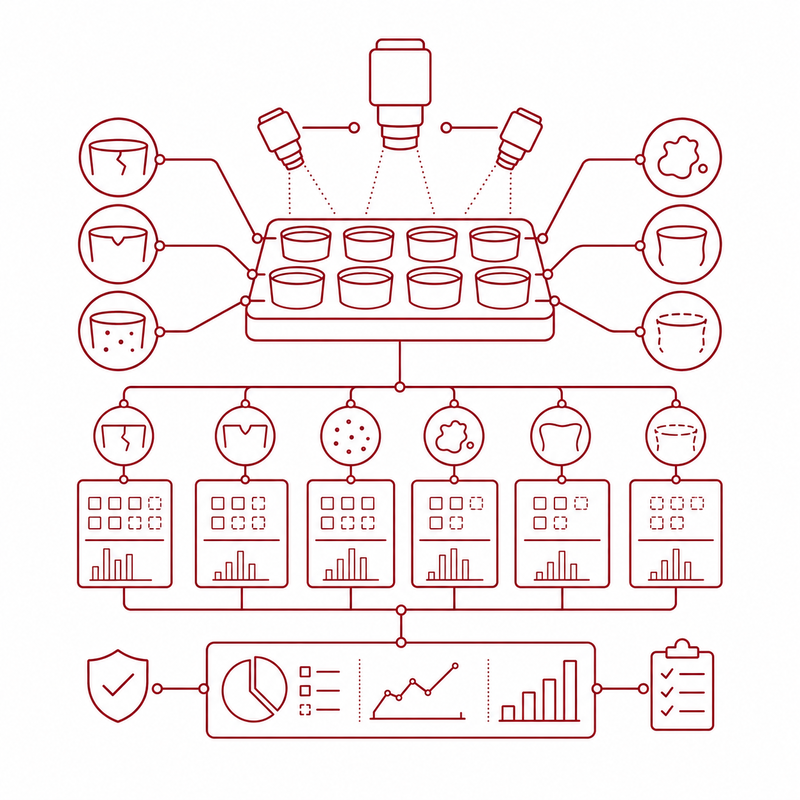

Detected defects can be classified according to defined defect types. This allows quality deviations not only to be identified, but also to be systematically evaluated and utilized for process analysis.

Inspected characteristics:

• Assignment of detected defects to defined defect classes
• Distinction between different defect types
• Evaluation of defect frequencies
• Structured recording of quality-related deviations

Benefits:

The classification supports quality assurance, process optimization, and data-driven analysis. Recurring defect patterns can be identified more quickly and analyzed in a targeted manner.

well.inspect can be configured to inspect wells, cups, microtiter plates, and trays. Additional well and tray formats can be implemented to suit the application.

Among other things, well.inspect detects breakage, damage, incomplete mold filling, geometric deviations, black spots, stains, contamination, and missing or misaligned wells in the tray.

Yes. well.inspect can detect visible contamination, foreign particles, deposits, or noticeable impurities on or in wells, cups, and trays.

Yes. well.inspect can check trays for completeness and detect missing, misaligned, or incomplete components.

Yes. Detected defects can be classified according to defined defect types and used for quality assurance, process evaluation, or data analysis.

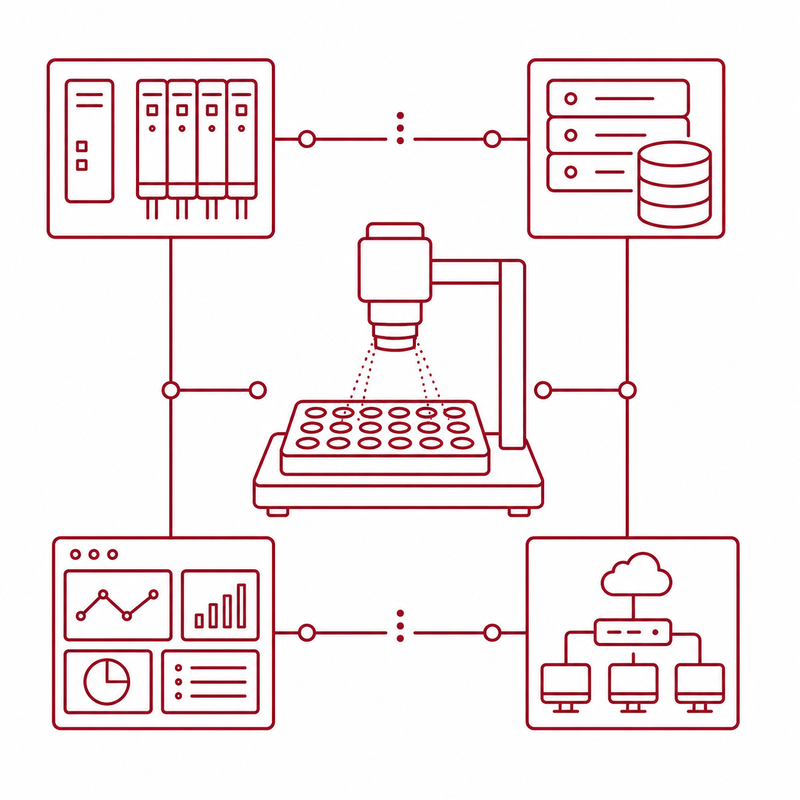

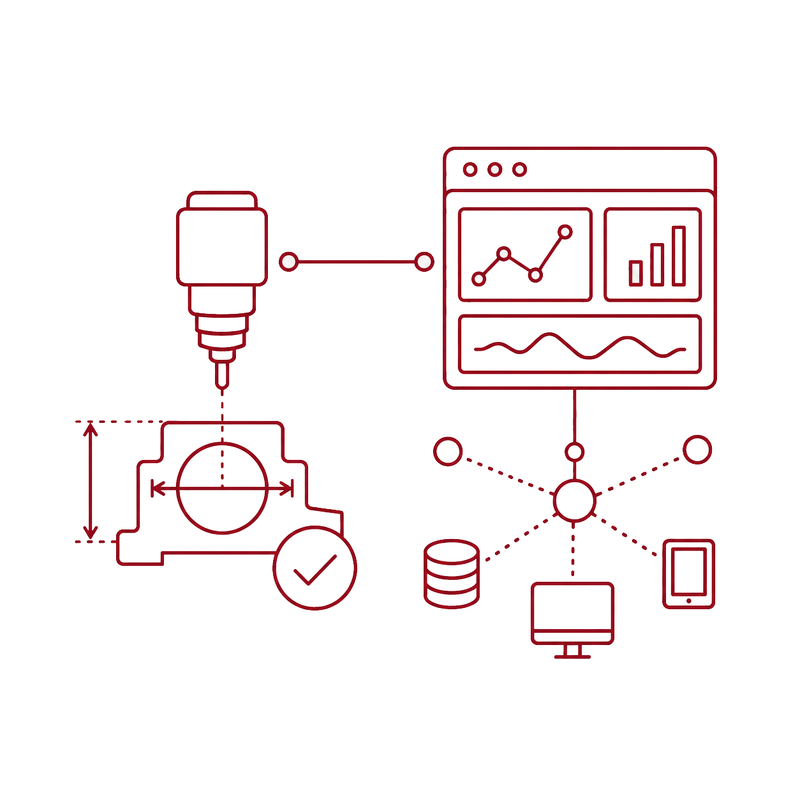

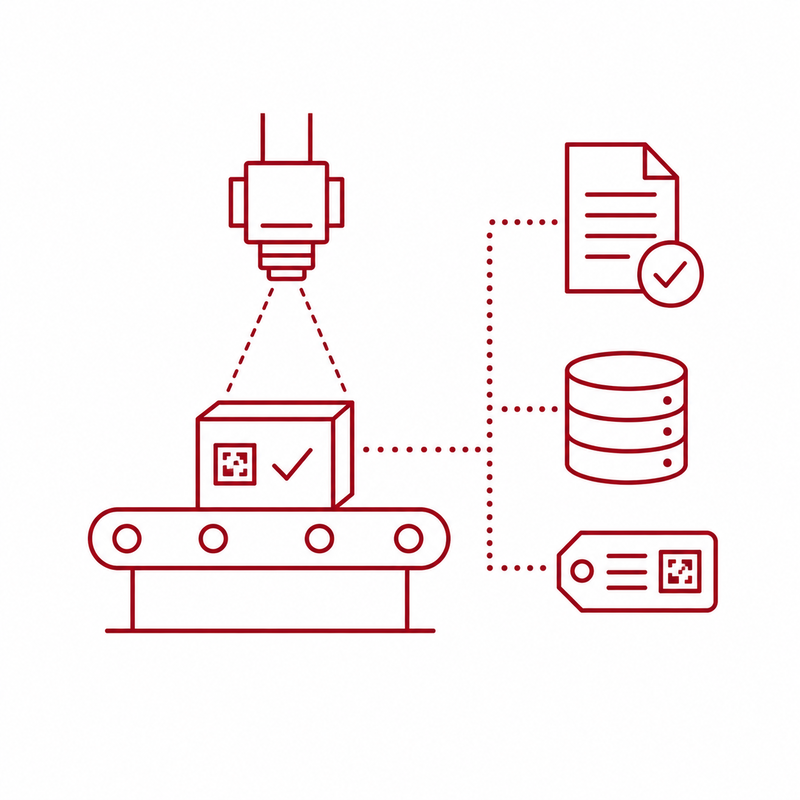

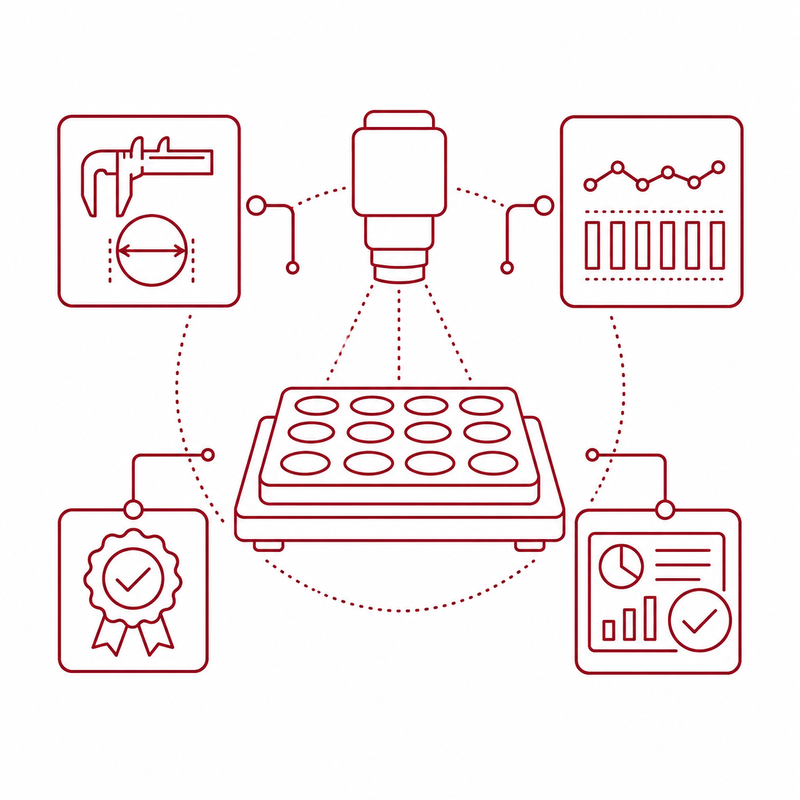

Yes. well.inspect is designed for demanding production environments in medical technology, diagnostics, and life sciences, and can support requirements for documented inspection results, user management, audit trails, measurement system capability, and data integration.
